Concrete Patio Drainage Solutions for Houston's Heavy Rainfall
Concrete patio drainage in Houston requires intentional slope design and, in many cases, channel drains or French drains. The city's 50-plus inches of annual rainfall and slow-draining clay soil mean drainage isn't optional. Concrete Specialists of Texas builds residential concrete patios across the Greater Houston area with drainage engineering included in every installation to protect both the patio surface and the home's foundation.
Harris County's flat topography and dense clay subsoil create a drainage problem that most national patio guides ignore entirely. Water doesn't percolate through Houston's clay the way it moves through sandy or loamy soil in other regions. It pools on the surface and flows wherever gravity and grading direct it, which means your patio's slope and drainage system are as important as the concrete itself.

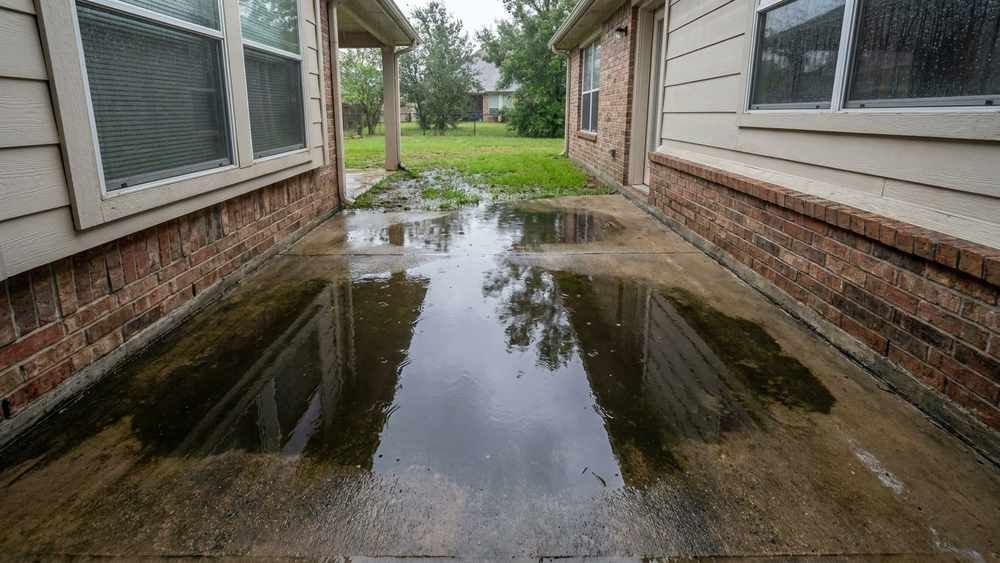

Why Drainage Is Critical for Houston Patios
Protecting Your Foundation
A patio that slopes toward your home or allows water to pool against the foundation wall creates a direct path for moisture to reach the soil beneath your house. In Houston, where the clay around foundations swells when wet, misdirected patio drainage accelerates the soil movement that causes interior foundation cracking, sticking doors, and uneven floors. Foundation repairs in Houston average $5,000 to $15,000 depending on the extent of movement.
Protecting the Patio Itself
Standing water on concrete accelerates surface degradation. Houston's humidity already keeps moisture levels high year-round. Add pooled water from poor drainage, and you get algae growth, staining, surface scaling , and premature joint failure. Properly drained concrete lasts 25 to 30 years. Poorly drained concrete in Houston can start showing damage within five.
Three Drainage Solutions That Work on Houston Clay
These systems work independently or together depending on your lot's grade, soil permeability, and the patio's relationship to your home.
1. Proper Slope (Minimum 1/8 Inch per Foot)
Any outdoor residential concrete should slope away from the house at a minimum rate of 1/8 inch per linear foot, though 1/4 inch per foot is standard practice for Houston installations. On a 16-foot patio, that translates to 2 to 4 inches of fall from the house wall to the far edge. This passive system handles light to moderate rainfall without any mechanical components.

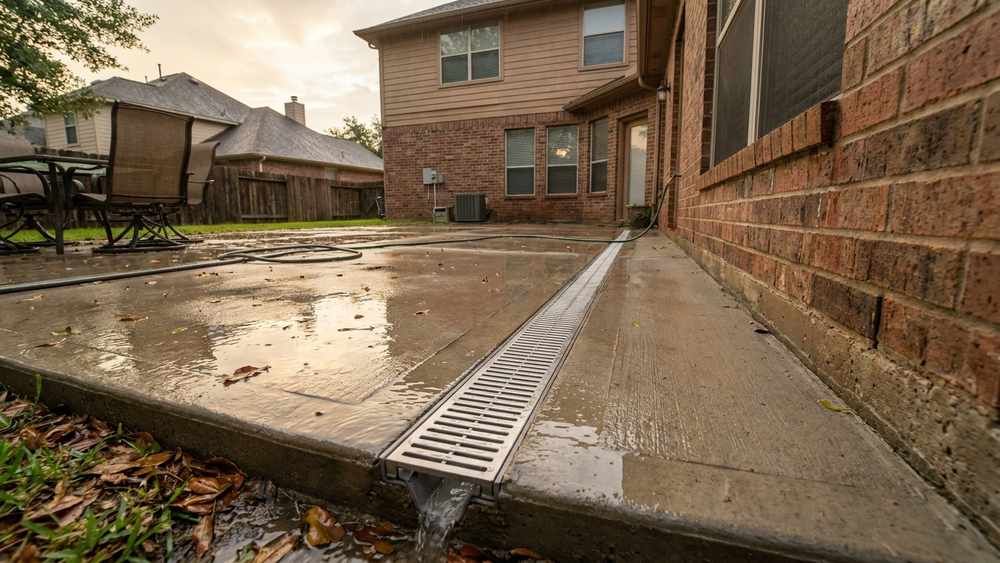

2. Channel Drains
For patios adjacent to the home or enclosed on multiple sides, a channel drain installed along the patio's low edge collects water and routes it to the yard or storm drainage system. Channel drains cost $20 to $40 per linear foot installed and are the most common add-on for Houston patio projects where slope alone can't move water fast enough during heavy storms.
3. French Drains
A French drain is a gravel-filled trench with a perforated pipe that collects subsurface water and redirects it away from the patio and foundation. In Houston's clay soil, French drains are especially valuable because the clay prevents natural water percolation. Installation runs $25 to $50 per linear foot and is typically done during patio construction before the slab is poured.

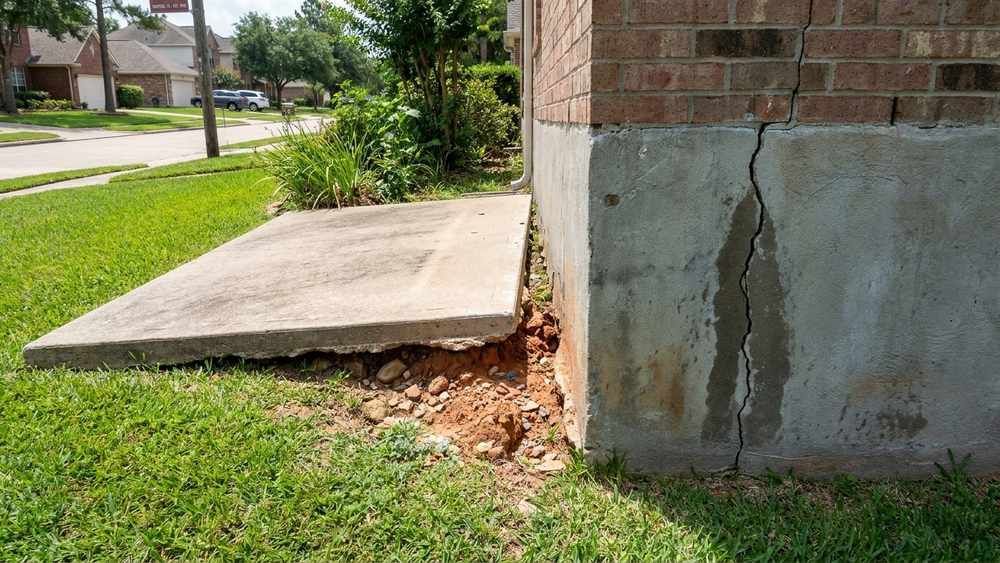

What Happens When Drainage Fails
Poorly drained patios create two problems that compound over time. On the surface, pooled water causes staining, algae, and accelerated concrete degradation. Beneath the surface, water that migrates under the slab activates the clay's shrink-swell cycle, causing the patio to settle, heave, or crack.
The most expensive drainage failure is one that directs water toward your home's foundation. A patio drainage system that costs $500 to $2,000 during construction prevents foundation repair bills that can exceed $10,000. Retrofitting drainage after the patio is poured is possible but costs two to three times more than including it in the original installation.
Frequently Asked Questions
Should a concrete patio slope away from the house?
Every concrete patio must slope away from the house at a minimum of 1/8 inch per foot. Standard practice in Houston is 1/4 inch per foot. This prevents water from pooling against the foundation, which is critical on Houston's expansive clay soil where moisture triggers soil movement and structural stress.
How do you drain water from a concrete patio in Houston?
The most effective approach combines proper slope with a channel drain along the patio's low edge. Concrete Specialists of Texas designs drainage into every patio installation, using slope calculations and drain systems matched to the lot's grade, soil type, and proximity to the foundation.
How much does patio drainage cost in Houston?
Proper slope is included in professional patio installation at no extra cost. Channel drains add $20 to $40 per linear foot, and French drains cost $25 to $50 per linear foot. Most Houston patio drainage systems total $500 to $2,000, a fraction of the foundation repair costs they prevent.

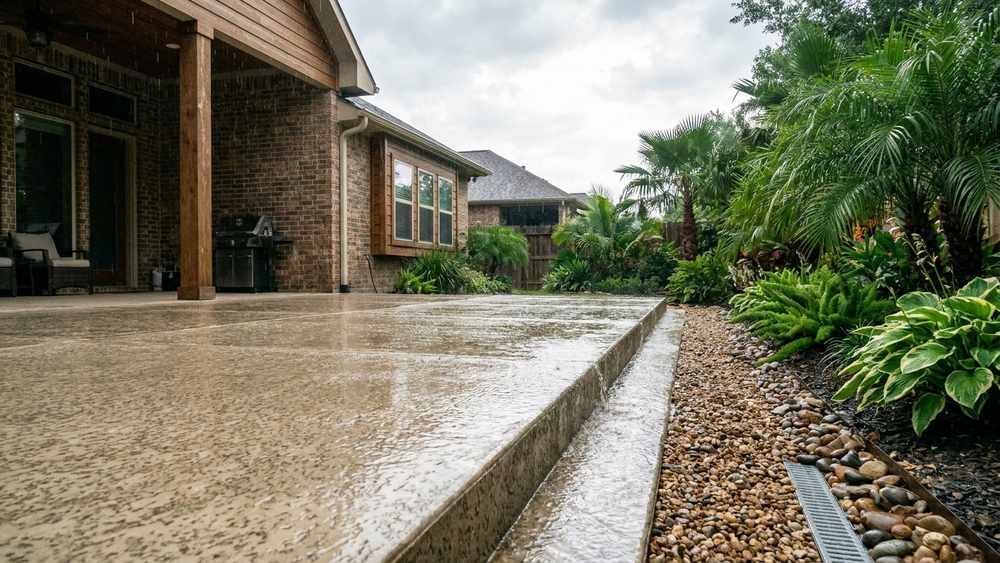

Solve Drainage Before It Becomes a Foundation Problem
Water management is the most underestimated factor in Houston patio construction. The right slope, drain type, and discharge point protect both the concrete surface and the home's foundation from the moisture-driven soil movement that characterizes building on Houston's clay.
Contact Concrete Specialists of Texas at (346) 812-9757 for a free patio consultation. Every estimate includes a drainage assessment, slope specifications, and transparent pricing for the complete installation, including any channel or French drain systems your lot requires.
